Overview

HD-484ZL Intelligent pressure / differential pressure transmitter controller is a fully digital measurement and control product that integrates pressure/differential pressure measurement, display, contact control and transmission output, and has an RS485 digital interface. It can be directly installed at the on-site pressure/differential pressure measurement point or on the test bench control panel. It can use buttons to set various parameters such as zero point value, full scale value, contact pressure/differential pressure value, etc. on-site, and can also use RS485 bus function to realize network, digital signal transmission and remote setting and adjustment of transmitter parameters. It is widely used in the automatic control field of hydropower, metallurgy and chemical industries to measure and control the pressure/differential pressure of fluid media.

     Features

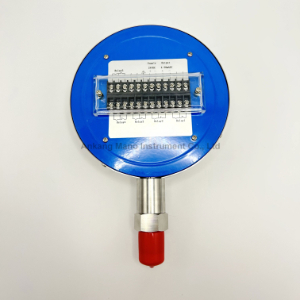

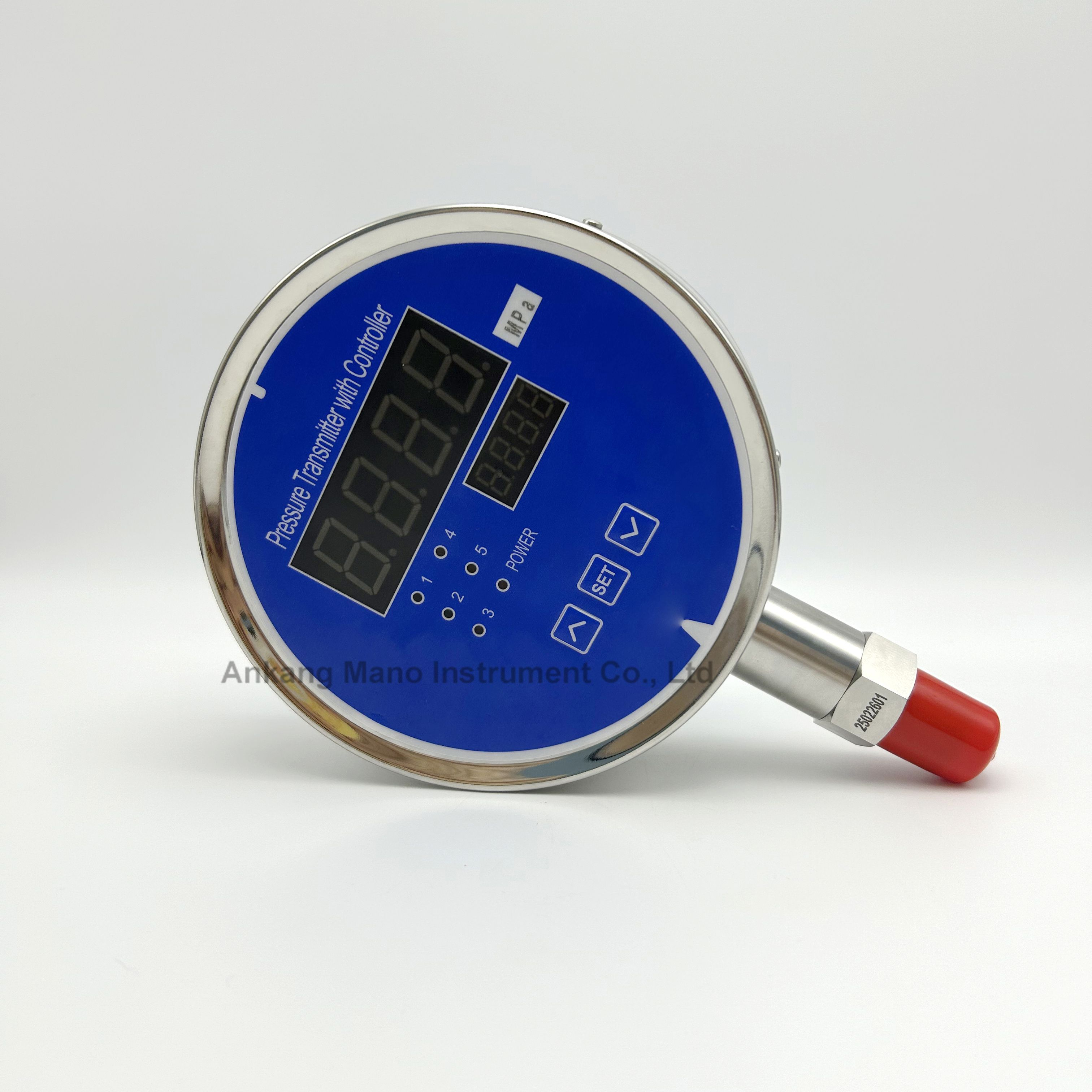

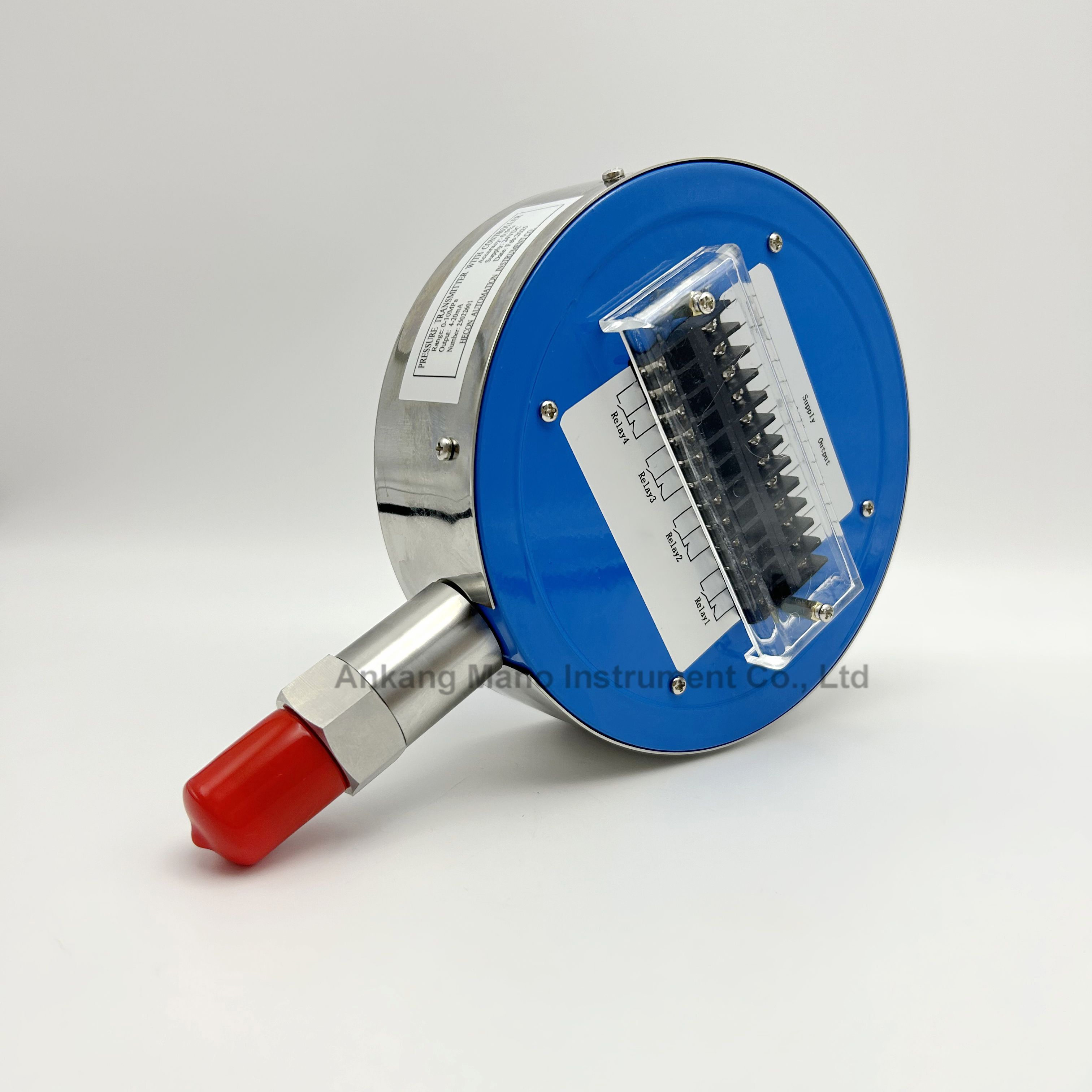

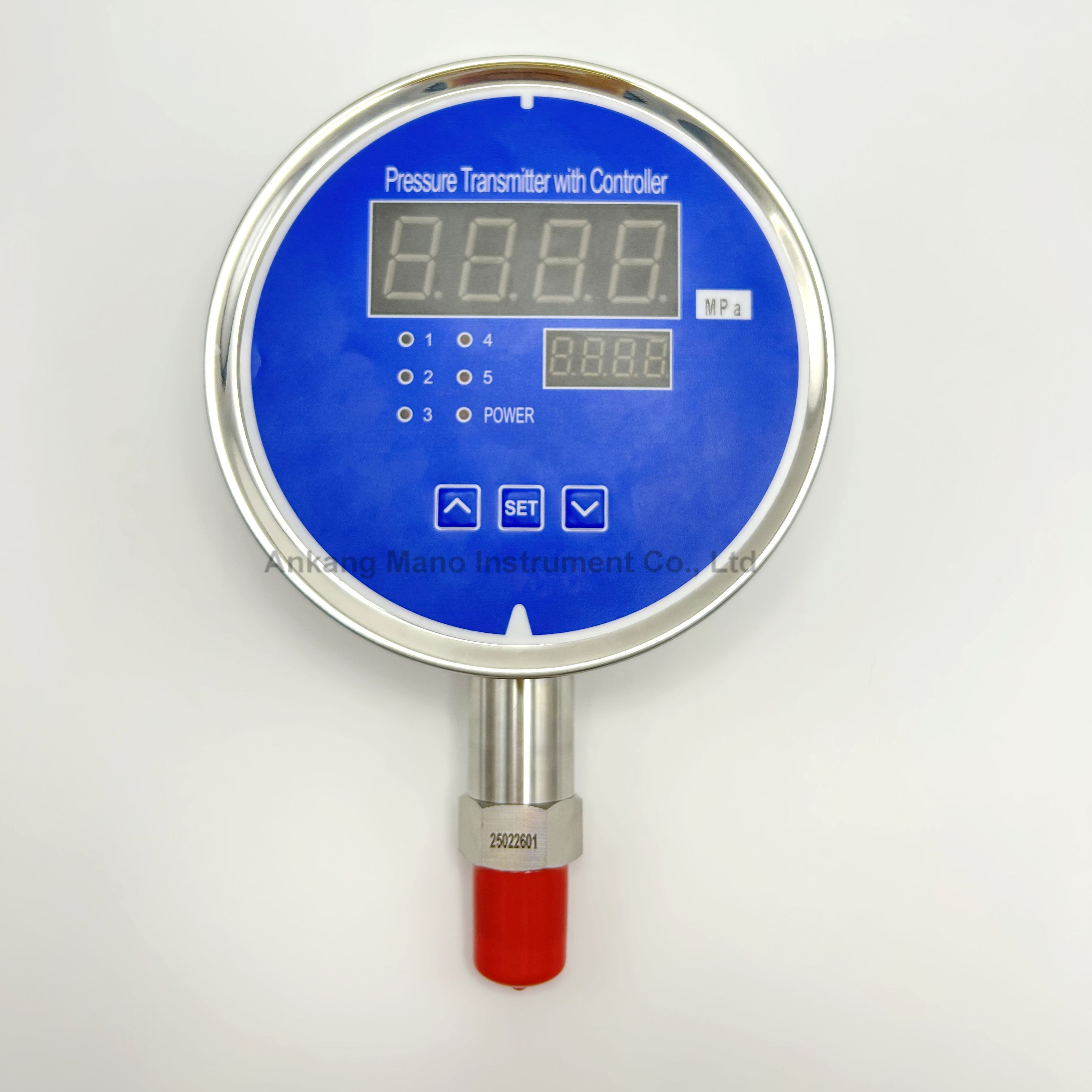

     Φ150mm design, ultra-high brightness LED full four-digit pressure display. AC and DC power supply options.

    RS485 interface, standard Modbus RTU protocol, convenient for networking and data transmission.

    It can realize remote setting of product zero point, full scale display value, control contact value and other parameters

    Press the button to set the parameters of the transmitter controller on site, reset to zero, and manage passwords by category

    Can output standard analog signal 4mA ~ 20mA DC or 0V ~ 10V DC

    Up to 5 control contacts, contact value and contact status can be set arbitrarily

    The control contact can set the hysteresis value to eliminate the contact jitter phenomenon and ensure reliable control

   Function

  • HD-484ZL Range:-100kPa…0kPa ～ 10kPa…100MPa

  • Overload: 1.5 times full scale pressure or 110MPa (the minimum value)

  • Accuracy: ±0.25%FS (typical), ±0.5%FS (maximum)

  • Temperature error: ±0.03%FS%℃(≤ 100kPa) ±0.02%FS%℃(> 100kPa)

  • Long-term stability: ≤ ±0.5%FS/year

  • Power supply: 220VAC or 110 ~ 370V DC or 24V DC

  • Maximum power consumption: ≤ 3.5W

  Output signal:

  • Analog: 4mA ~ 20mA DC or 0V ~ 10V DC

  • Digital: RS485 (Modbus RTU protocol)

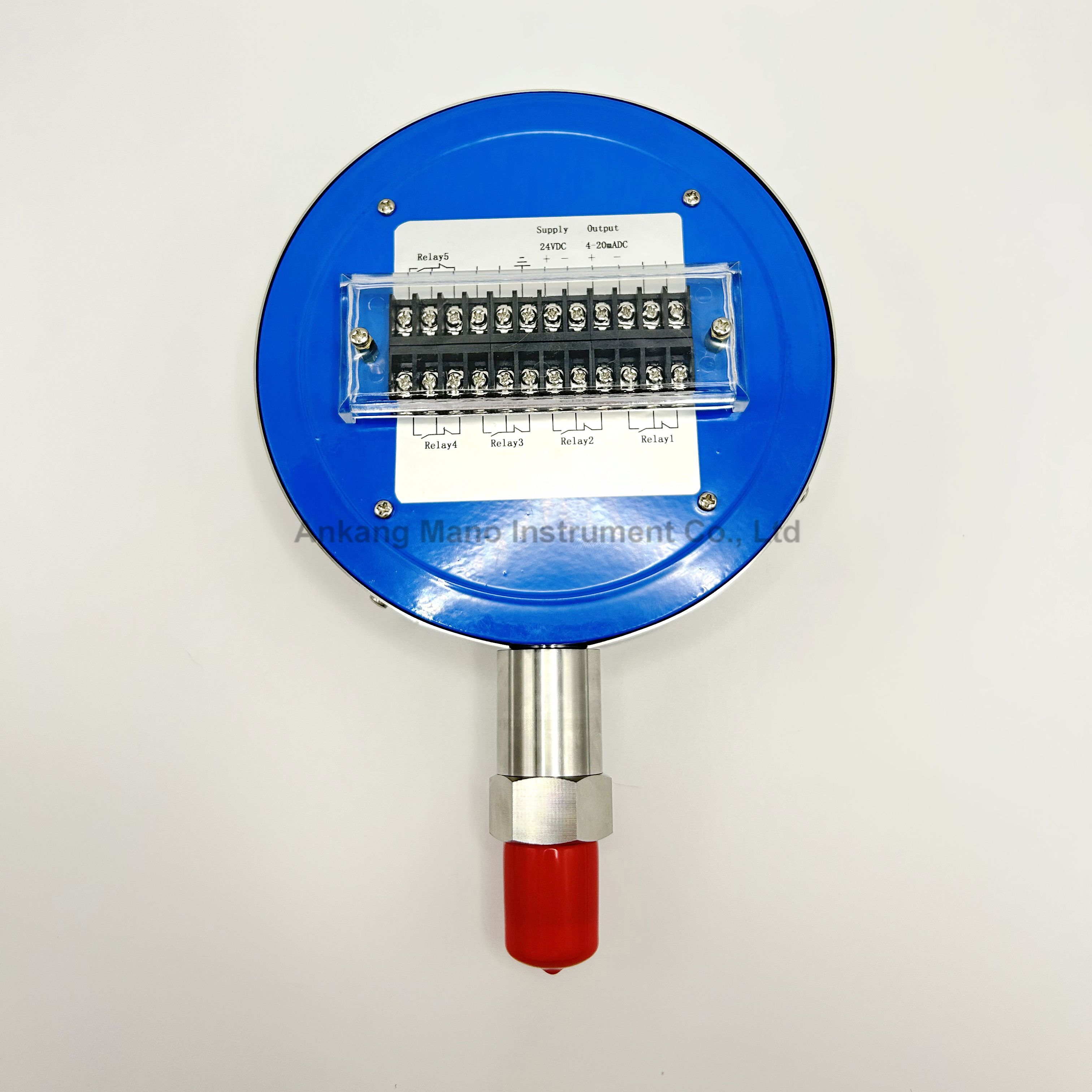

  • Number of relay contacts: 1 ~ 5

  • Load capacity: 240V/3A (AC) or 30V/3A (DC)

  • Electric shock life: > 100,000 times

  • Pressure port: stainless steel 304

  • Electronic housing: stainless steel, aluminum alloy

  • Isolation diaphragm: stainless steel 316L

  • Interface type: multiple interface types are available

  • Installation type: vertical installation, axial installation

You can enjoy free warranty service for the whole machine within one year from the date of sale. For cases where the free warranty service is not met, our company provides paid technical service and repair service for the life of the product.

The following conditions are not covered by the free warranty:
Damage caused by human factors, or used in abnormal working environment, and failure or damage caused by operation not in accordance with the instructions.
Unauthorized disassembly, repair, modification of products, etc.
Damage caused by other force majeure (such as natural disasters).
Not belonging to our company's products (such as counterfeit products).
