HD-100S and HD-100C is two kinds of famous digital logger provided by our company.

HD-100S is like a small computer, when user set up the software well, it will record and store the history data, view and graph.

when user want to check the data, connected it to computer, then can see the history view and graph.

HD-100C is logging the real time view and graph, and show it on computer.

When user want to see the real time view and graph, connected it to computer, then can check the real time data.

In conclusion:

HD-100S is store and record the history view and graph.

HD-100C is record and show the real time view and graph.

Following will also compare their main Character for your reference.

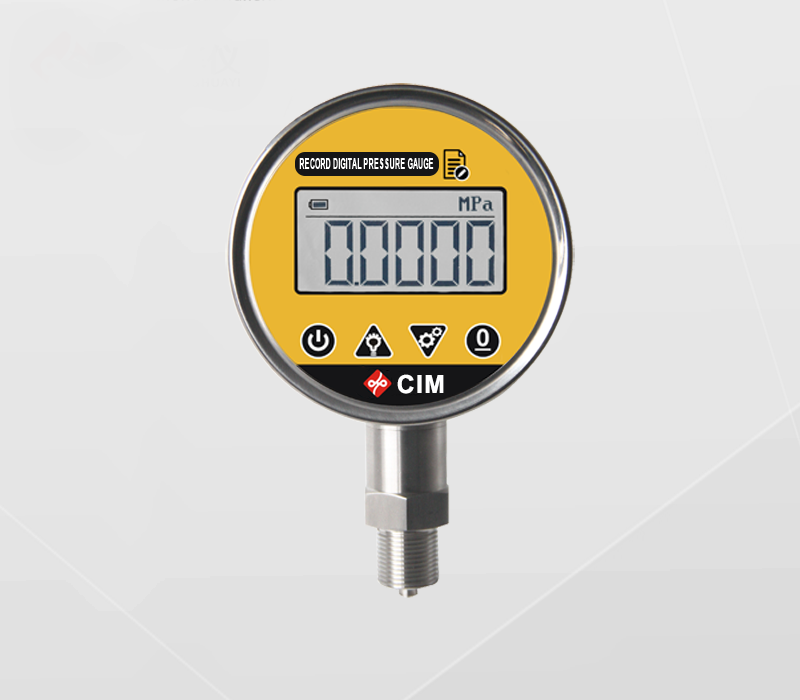

HD-100S Main Character

· High-resolution screen, show multiple records, convenient for users to view;

· Large-capacity record storage, can store up to 100,000 data;

· The recording period is adjustable, and can provide a variety of recording modes;

· Have PC-side software to import data;

· Reliable data storage, the memory can be refreshed cyclically for 100,000 cycles, and the data can be kept for more than 100 years;

· It has 4MB register memory;

· Each record data show the time in the format year-month-day-hour-minute-second;

· Data output through software in EXCEL or PDF or Word;

· Log interval: The log interval can be set by users, our factory defined time unit is seconds or minutes as user’s need;

· Wide temperature compensation, more accurate measurement;

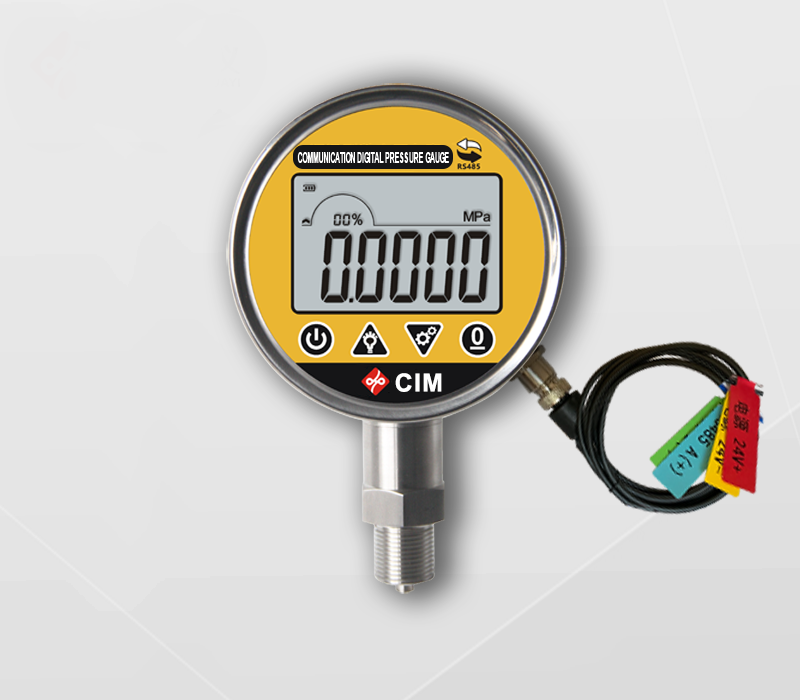

HD-100C Main Character

· Wide range temperature compensation make measurement more accurate;

· High-speed pressure sampling up to 10 times per second.

· Pressure sampling period could adjust;

· Standard RS485 communication, multiple instruments can be networked;

· Standard MODBUS RTU communication protocol, convenient PLC connection;

· Original imported 485 chip, reliable communication and strong anti-interference ability;

· User-defined instrument slave address;

· User-defined communication rate;
