●Applications
• Marine Industry
• Water Treatment
• Pump & Compressor
• Refrigerating System
• Mechanical Equipment
• Measurement & Control
• Hydraulic Pressure & Pneumatic Device
●Features
• Compact size, easy to install
• Full range coverage
• High stability, low drift
• Various structures to choose from
• Can be used in various industrial occasions, strong versatility
●Introduction

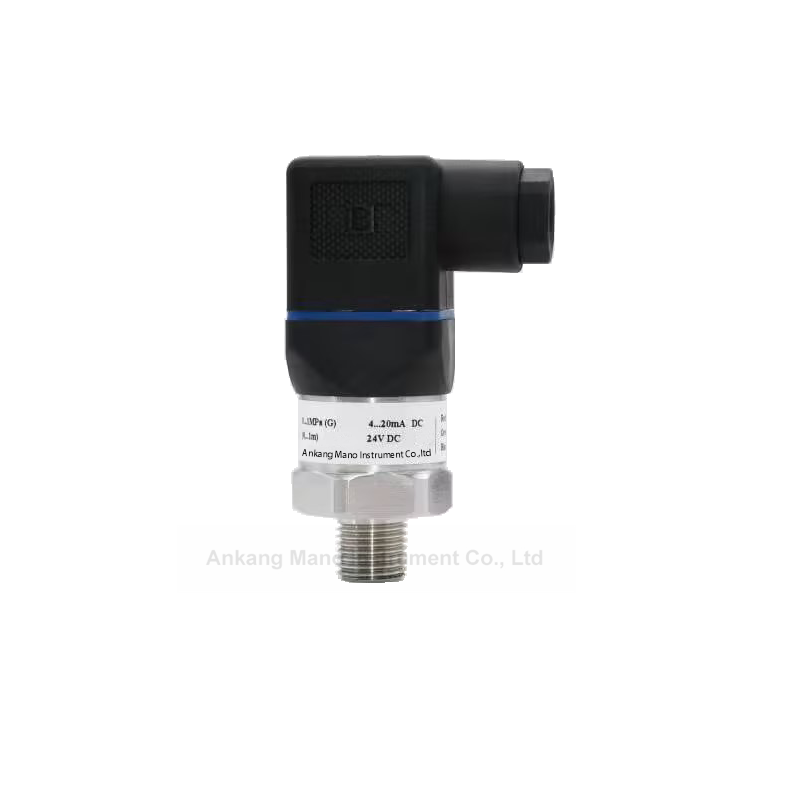

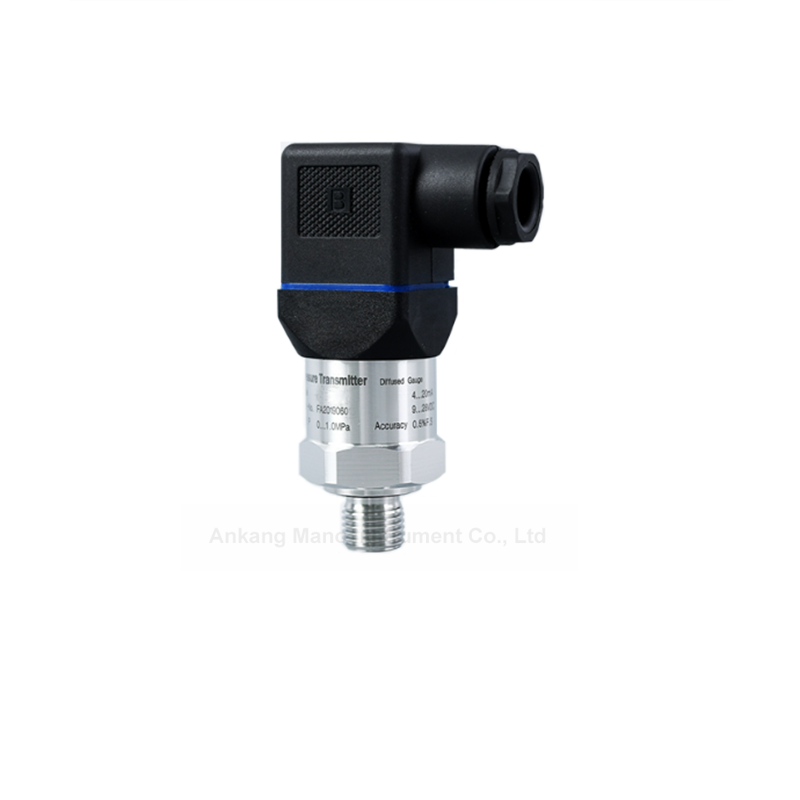

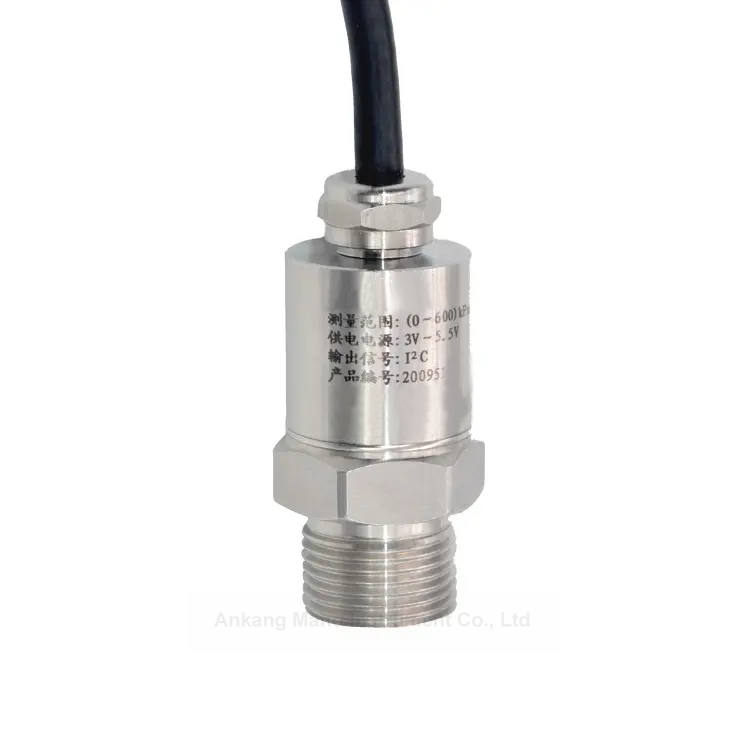

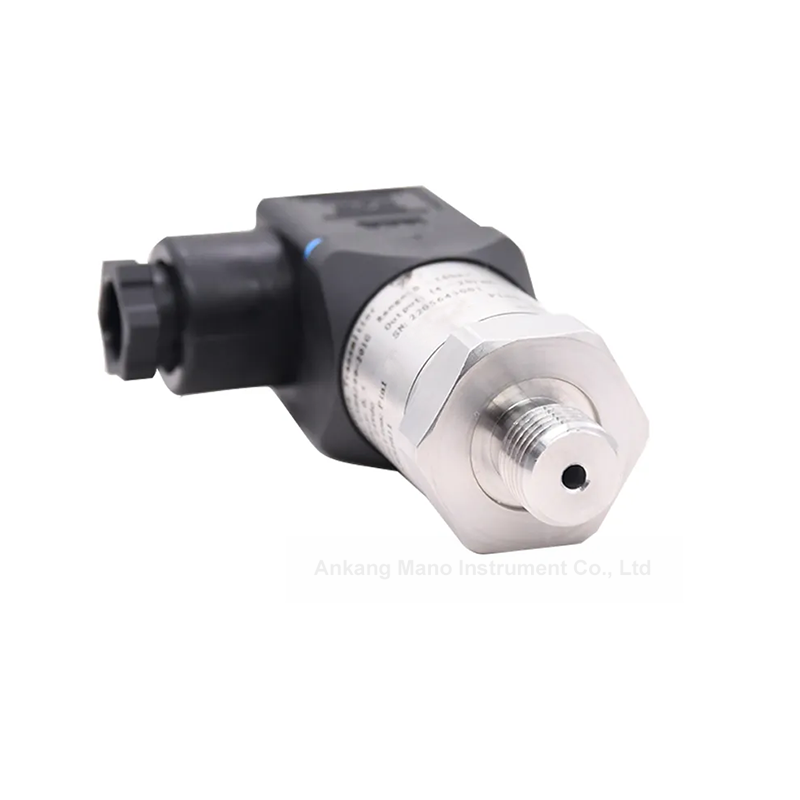

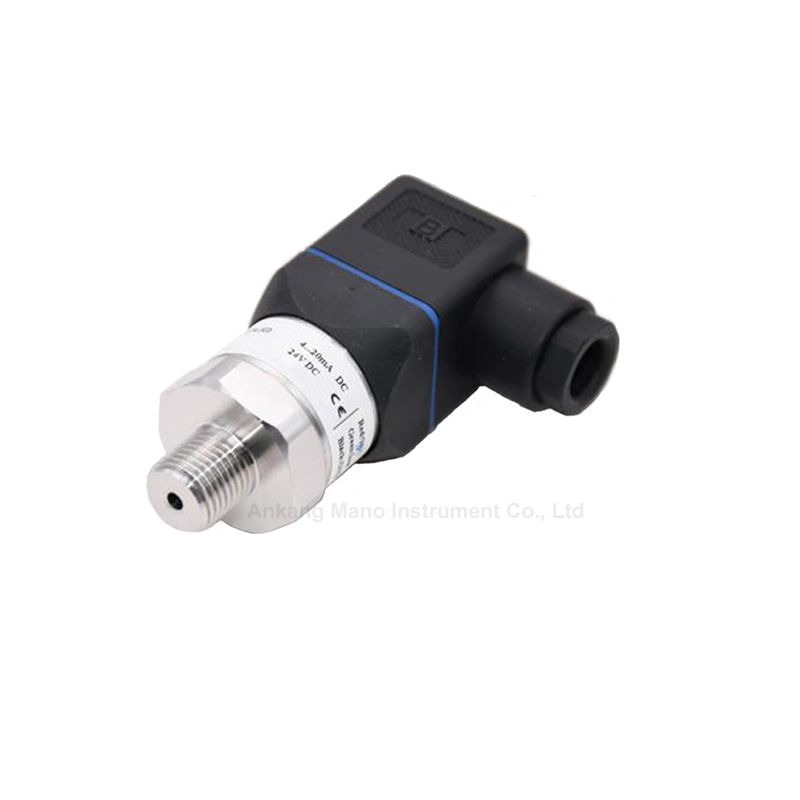

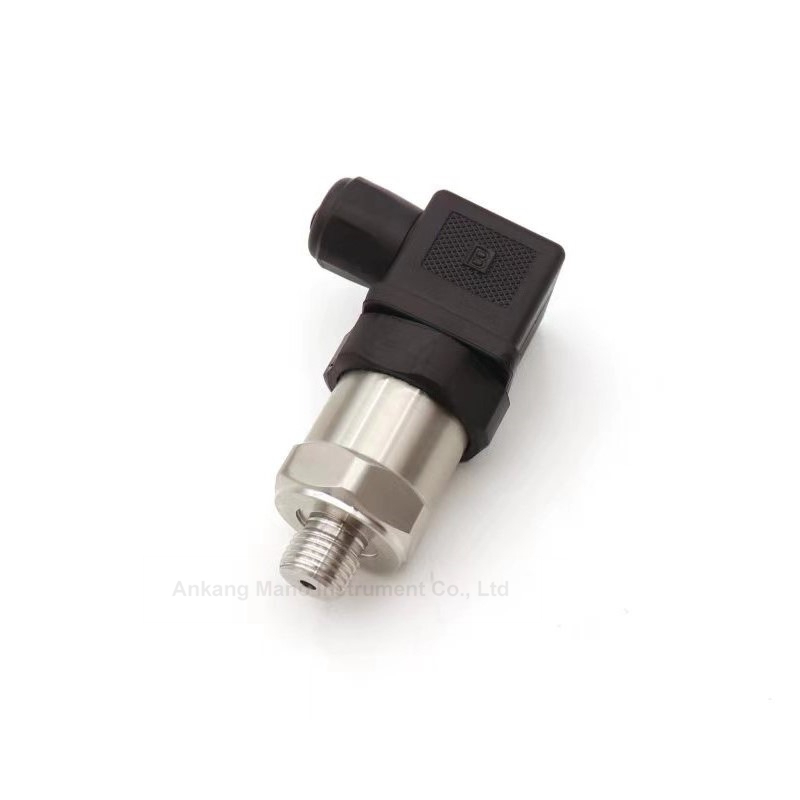

MNP-10 pressure transmitter is compactly designed and used a reliable silicon piezoresistive pressure sensor. After temperature compensation and digital circuit signal conditioning, it can output standard industrial analog signals and is suitable for various pressure monitoring in general industries. Each product has been carefully designed, component selection, process curing, high temperature aging, environmental simulation testing and other processes to ensure that each product is stable and reliable.
●Output Signals
|
Output Singal |
Power Supply |
Voltage Effect |
Output Ripple |
|
4mA~20mA DC(A) |
8V~30V DC |
≤±0.1%FS
|
≤±0.1% |
|
1V~5V DC(O) |
|||
|
0V~5V DC(F) |
|||
|
0.5V~4.5V DC(L) |
|||
|
0V~10V DC (T) |
14V~30V DC |
||
|
0.5V~4.5V DC(L2) |
(5±0.5) V±0.1V DC Ratio |
|
≤20 mV
|
●Outline Dimensions
●Electrical Connection
●Process Connection
Product warranty terms:
You can enjoy free warranty service for the whole machine within one year from the date of sale. For cases where the free warranty service is not met, our company provides paid technical service and repair service for the life of the product.
The following conditions are not covered by the free warranty:
Damage caused by human factors, or used in abnormal working environment, and failure or damage caused by operation not in accordance with the instructions.
Unauthorized disassembly, repair, modification of products, etc.
Damage caused by other force majeure (such as natural disasters).
Not belonging to our company's products (such as counterfeit products).
●Ordering Guide
|
MNP-10 |
Pressure Transmitter |
||||||||||||||||||||
|
|
|
Range |
Measurement Range -1bar…0mbar ~ 250mbar…250bar |
||||||||||||||||||
|
|
|
[0 ~ X]mbarL or barL |
X: actual measured range, L means cable length when electrical connection is E2 |
||||||||||||||||||
|
|
|
|
|
Code |
Power Supply |
||||||||||||||||
|
|
|
|
|
U2 |
8V~30V DC |
||||||||||||||||
|
|
|
|
|
U3 |
14V~30V DC |
||||||||||||||||
|
|
|
|
|
UR |
(5±0.5) V±0.1V DC Ratio |
||||||||||||||||
|
|
|
|
|
|
|
Code |
Output Signal |
||||||||||||||
|
|
|
|
|
|
|
A |
4mA~20mA DC |
||||||||||||||
|
|
|
|
|
|
|
O |
1V~5V DC |
||||||||||||||
|
|
|
|
|
|
|
F |
0V~5V DC |
||||||||||||||
|
|
|
|
|
|
|
T |
0V~10V DC |
||||||||||||||
|
|
|
|
|
|
|
V |
0.5V~4.5V DC |
||||||||||||||
|
|
|
|
|
|
|
VR |
0.5V~4.5V DC Ratio |
||||||||||||||
|
|
|
|
|
|
|
|
|
Code |
Material |
||||||||||||
|
|
|
|
|
|
|
|
|
Isolated Diaphragm |
Pressure Port |
Housing |
|||||||||||
|
|
|
|
|
|
|
|
|
31 |
SS 316L |
SS 316L |
SS316L |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
Code |
Electrical Connection ① |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
E1 |
4-pin plug connector |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
E2 |
cable connection |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
E4 |
M12×1 4-pin plug connector |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Code |
Process Connection |
||||||||
|
|
|
|
|
|
|
|
|
|
|
P1 |
M20×1.5 male, end face seal |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
P2 |
G1/4 male, end face seal |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
P3 |
G1/2 male, end face seal |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
P5 |
M20×1.5 male, waterline seal |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
P6 |
NPT1/4 male |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Code |
Accessory |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
null |
no accessory |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
D4 |
4 digits LED digital indicator (only for 4mA ~ 20mA DC output non- explosion proof or non-ship-use products with B1 connection) |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
D5 |
4 digits LCD digital indicator (only for 4mA ~ 20mA DC output non- explosion proof or non-ship-use products with B1 connection) |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Code |
Pressure Type |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
G |
gauge |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A |
absolute |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S |
sealed gauge |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
MNP-10 [0 ~ 10]bar U2 A 31 E1 P2 D4 G Complete Type Specification |
|||||||||||||||||||||
●Notes
1. Please fully understand the medium conditions, pressure range, etc. Avoid unnecessary losses caused by unreasonable use of products.
2. Although the product is designed with various protection measures, for extreme applications, such as strong lightning on site, the power supply should be reliably grounded and a lightning protection device should be installed to reduce the probability of product failure as much as possible.
3. For special application, our company can provide specially designed products, and customers are welcome to consult and negotiate. Sales support: sales@manoinstrument.com we will provide you with a full range of services.
