●Applications
• Mining
• Power plant
• Metallurgical industry
• Water and wastewater
• Hydro logical exploration
• Pharmaceutical industry
●Features
• Integrated structure, no extra adjustment required
• CE, RoHS approved
●Introduction

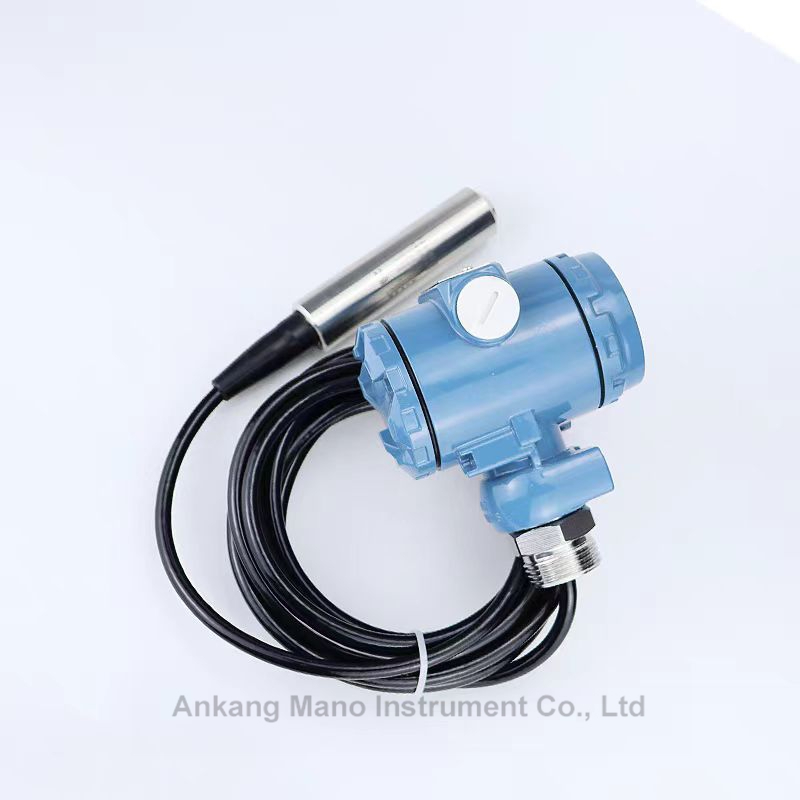

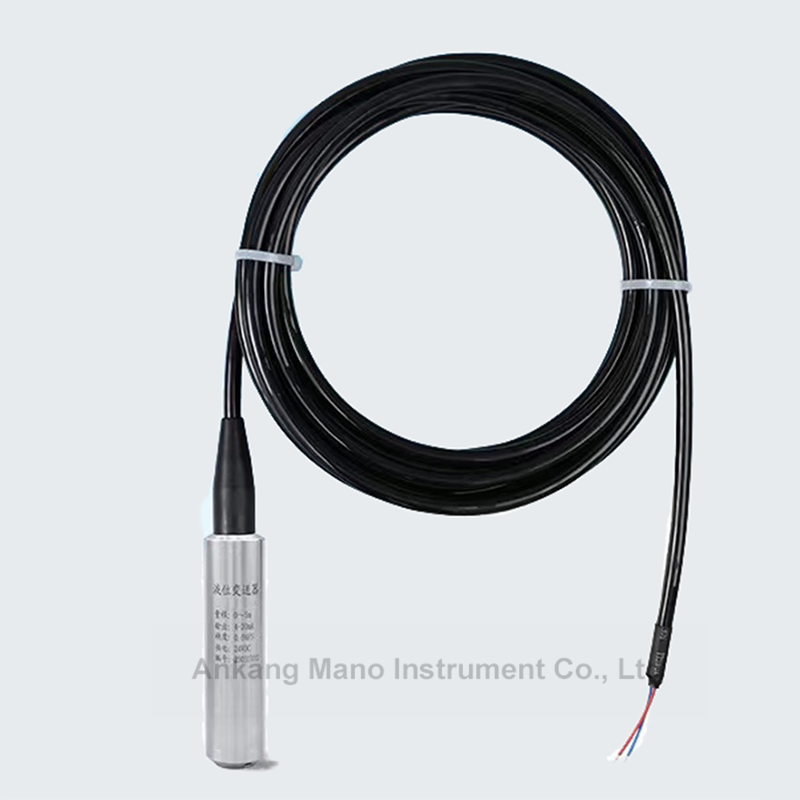

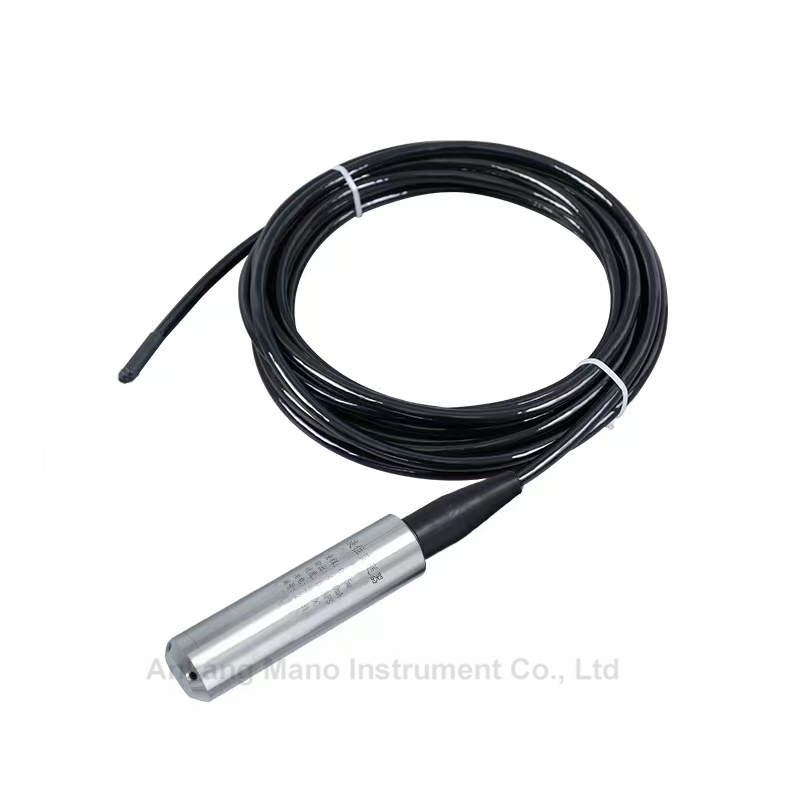

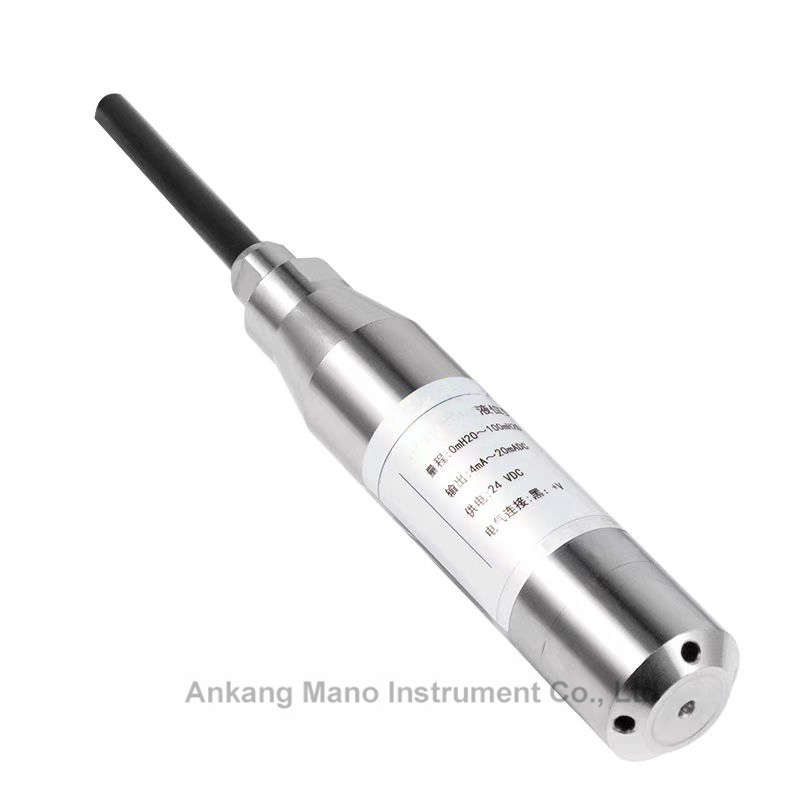

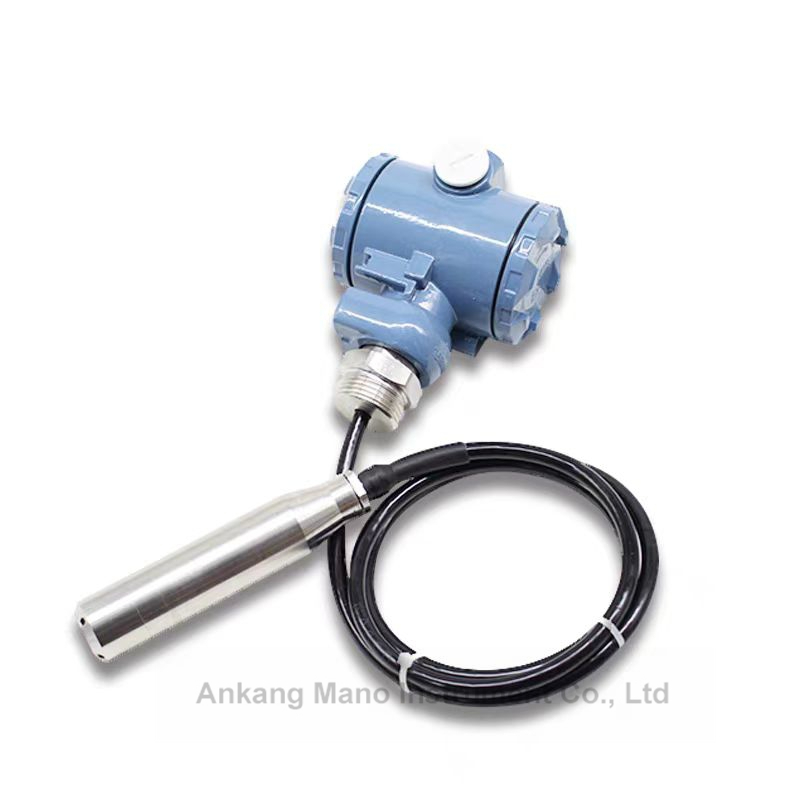

MNP-20L level transmitter is a fully sealed submersible level transmitter designed for general industrial applications. It contains a piezoresistive sensing element of excellent stability and a dedicated circuit that are housed in a high strength stainless steel housing. Featured with integrated structure, standard outputs, the product is an ideal solution for automation control. The tightly sealed connection between the cable and housing allows long term service of the sensor in the liquids that are compatible with the material.
●Specifications
|
Range |
0mH2O ~ 1mH2O…200mH2O |
|
Over pressure |
2 times FS |
|
Pressure Type |
gauge, absolute |
|
Accuracy |
Check the accuracy on page 2 |
|
Long-term Stability |
range > 10mH2O, ≤ ±0.2％ FS/ year |
|
range ≤ 10mH2O, ≤ 20mmH2O/ year |
|
|
Application Temperature
|
-10℃ ~ 60℃ (intrinsic safe type) |
|
-20℃ ~ 70℃ (cable material: PE, PVC) |
|
|
-20℃ ~ 80℃ (cable material: PUR) |
|
|
Storage Temperature |
-20℃ ~ 85℃ |
|
Vibration |
10g, 55Hz ~ 2000Hz |
|
Shock |
100g, 11ms |
|
Protection Rating |
IP68 |
|
Weight |
≤220g(Cable not included) |
Product warranty terms:
You can enjoy free warranty service for the whole machine within one year from the date of sale. For cases where the free warranty service is not met, our company provides paid technical service and repair service for the life of the product.
The following conditions are not covered by the free warranty:
Damage caused by human factors, or used in abnormal working environment, and failure or damage caused by operation not in accordance with the instructions.
Unauthorized disassembly, repair, modification of products, etc.
Damage caused by other force majeure (such as natural disasters).
Not belonging to our company's products (such as counterfeit products).
●Ordering Guide
|
MNP-20L |
Level Transmitter |
|||||||||||||||||||
|
|
|
Range |
Measurement Range 0~1mH2O…200mH2O |
|||||||||||||||||
|
|
|
[0 ~ XmH2O]L |
X: actual measured range, L: cable length, recommended cable length L=X+(1~2)m |
|||||||||||||||||
|
|
|
|
|
Code |
Power Supply |
|||||||||||||||
|
|
|
|
|
U1 |
11V~28V DC |
|||||||||||||||
|
|
|
|
|
U6 |
5V±0.1V DC |
|||||||||||||||
|
|
|
|
|
U7 |
3.3V±0.1V DC |
|||||||||||||||
|
|
|
|
|
|
|
Code |
Output Signal |
|||||||||||||
|
|
|
|
|
|
|
A |
4mA~20mA DC |
|||||||||||||
|
|
|
|
|
|
|
O |
1V~5V DC |
|||||||||||||
|
|
|
|
|
|
|
F |
0V~5V DC |
|||||||||||||
|
|
|
|
|
|
|
T |
0V~10V DC |
|||||||||||||
|
|
|
|
|
|
|
V |
0.5V~4.5V DC |
|||||||||||||
|
|
|
|
|
|
|
L |
0.5V~2.5V DC |
|||||||||||||
|
|
|
|
|
|
|
|
|
Code |
Material |
|||||||||||
|
|
|
|
|
|
|
|
|
Isolated Diaphragm |
Housing |
|||||||||||
|
|
|
|
|
|
|
|
|
30 |
SS 316L |
SS 304 |
||||||||||
|
|
|
|
|
|
|
|
|
31 |
SS 316L |
SS316L |
||||||||||
|
|
|
|
|
|
|
|
|
45 |
Tantalum |
SS 304 |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
Code |
Junction Box |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
null |
no junction box |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
La |
Aluminum junction box without display |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
Lb |
MS200 waterproof junction box |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
Lc |
PD140 lightening-proof junction box |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
Ld |
Junction box (with or without display) |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Code |
Display Indicator (with Ld junction box only) |
|||||||
|
|
|
|
|
|
|
|
|
|
|
null |
null no display indicator |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
M1 |
0% ~ 100% linear indicator |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
M6 |
4 digits LED digital indicator |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
M7 |
4 digits LCD digital indicator |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Code |
Process Connection |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
null |
no special process connection |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
P1 |
M20×1.5 male, end face seal |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
P3 |
G1/2 male, end face seal |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
F1 |
fixed flange |
||
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
MNP-20 [0 ~ 2]mH2O U1 A 30 E1 P2 D4 null Complete Type Specification |
||||||||||||||||||||
