●Applications
• Food storage
• Hydrology and water resources
• Petroleum and petrochemical industry
●Features
• Small antenna, easy to
install
• Non-contact radar, no wear,
no pollution
• Negligible effect on
corrosion and foam
• High frequency, best to
measure solid and low dielectric constant medium
• Negligible effect on
atmospheric water vapor, temperature and pressure changes
• Explosion-proof type, Ex d
IIC T6 Gb
●Introduction

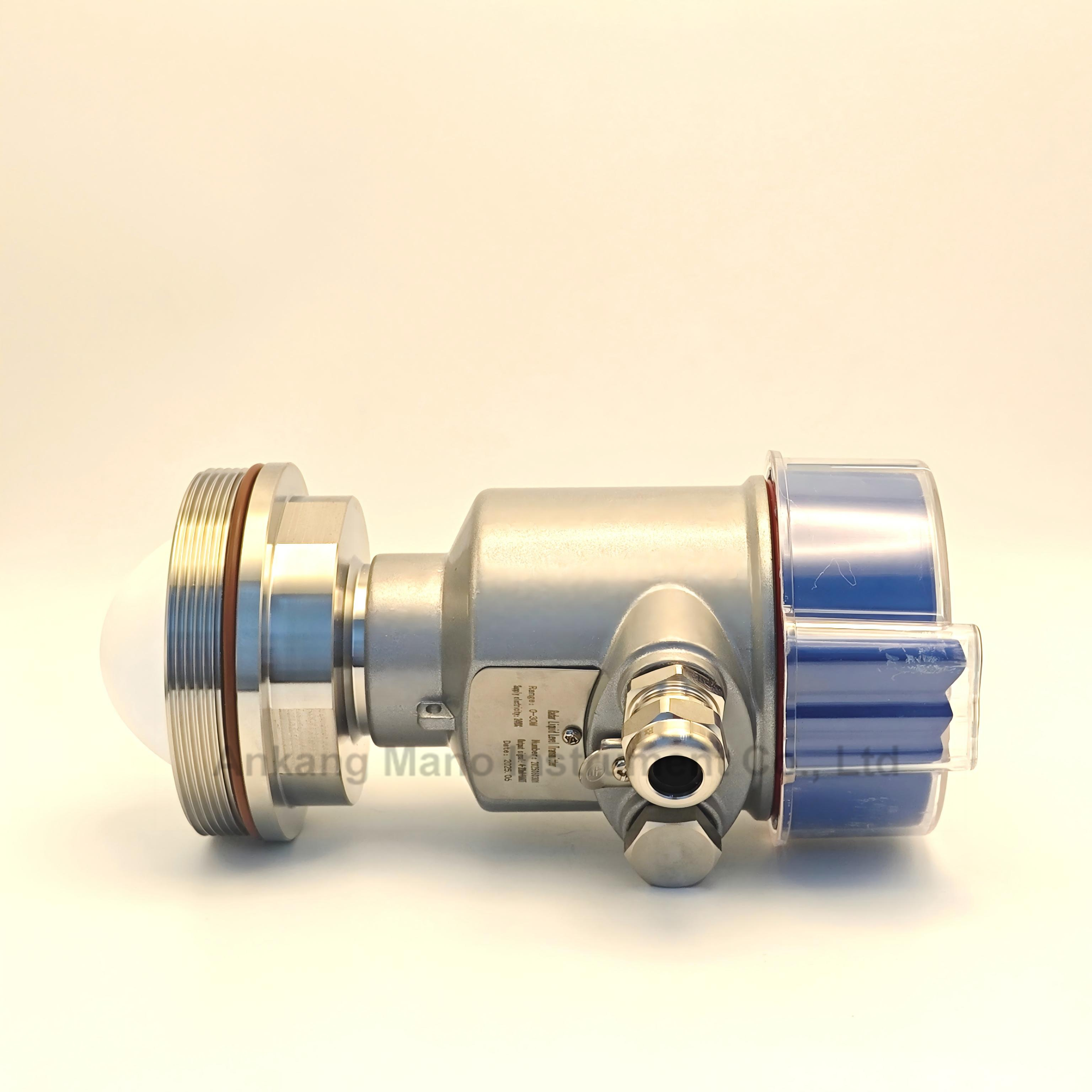

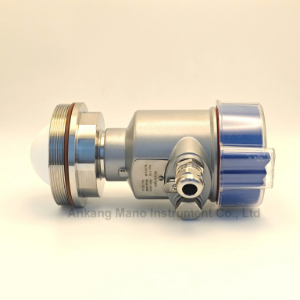

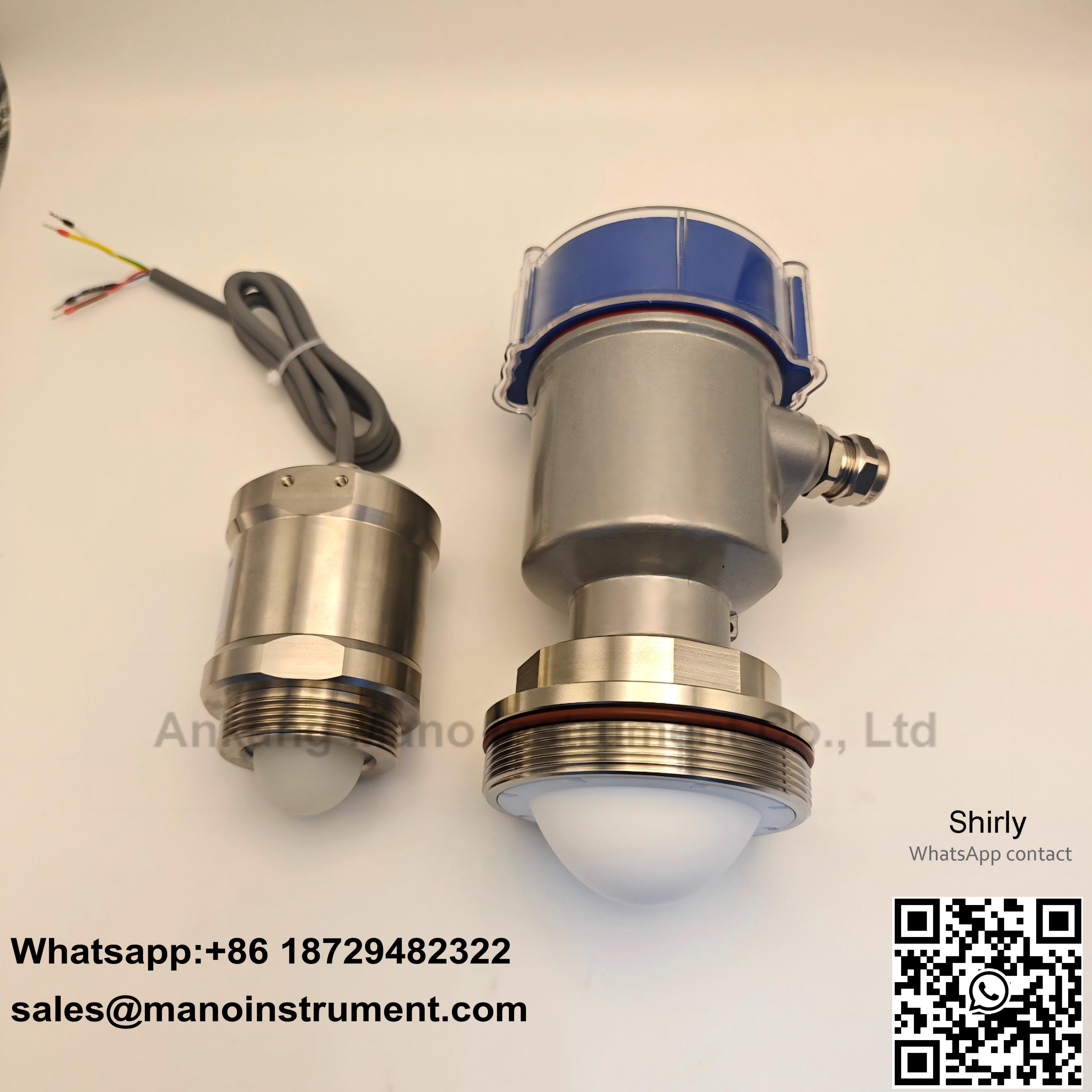

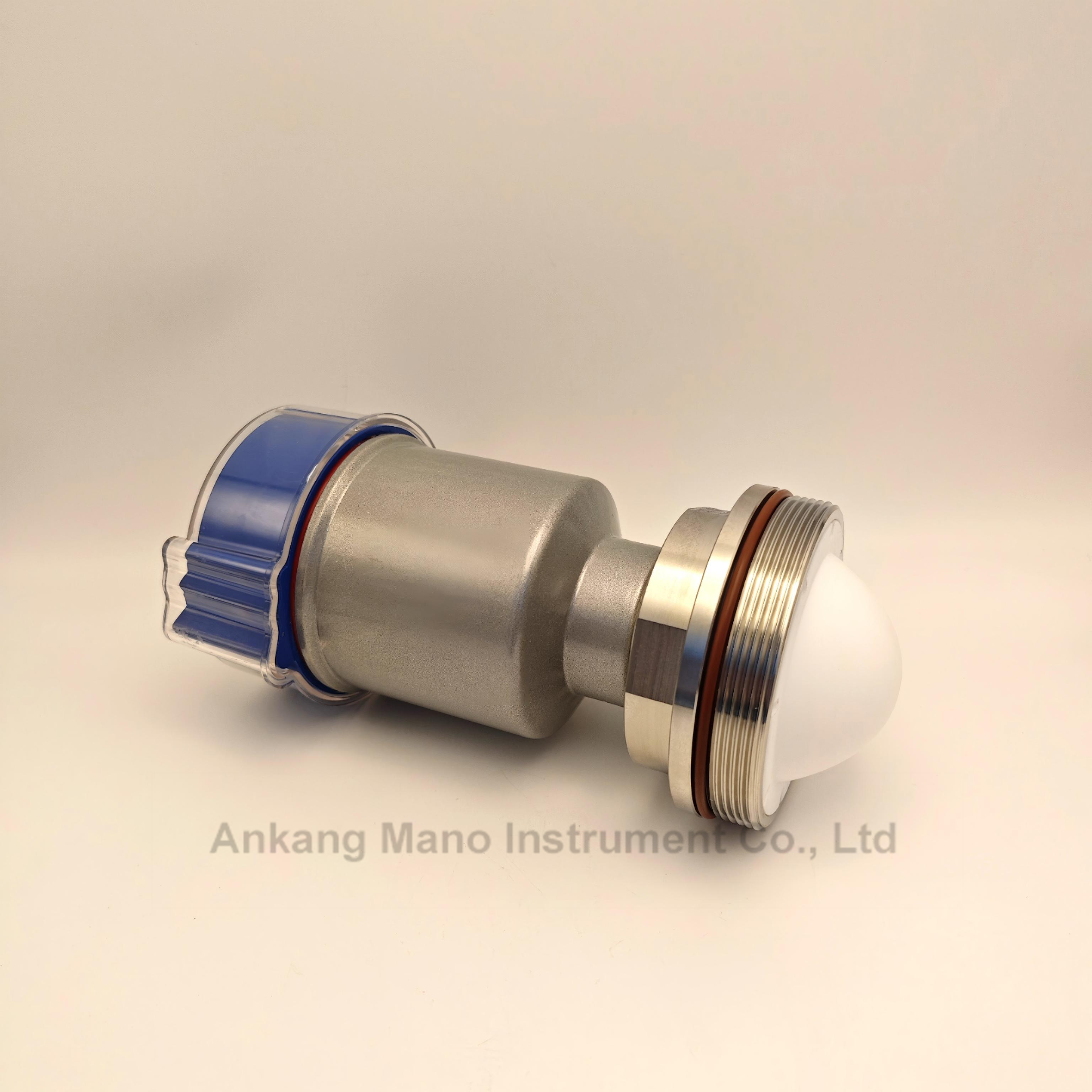

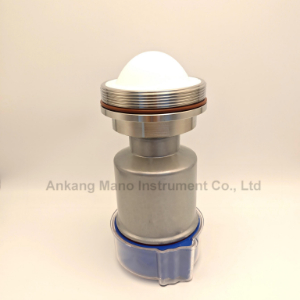

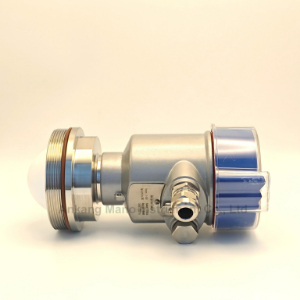

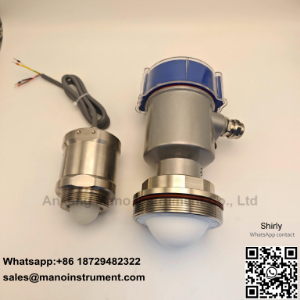

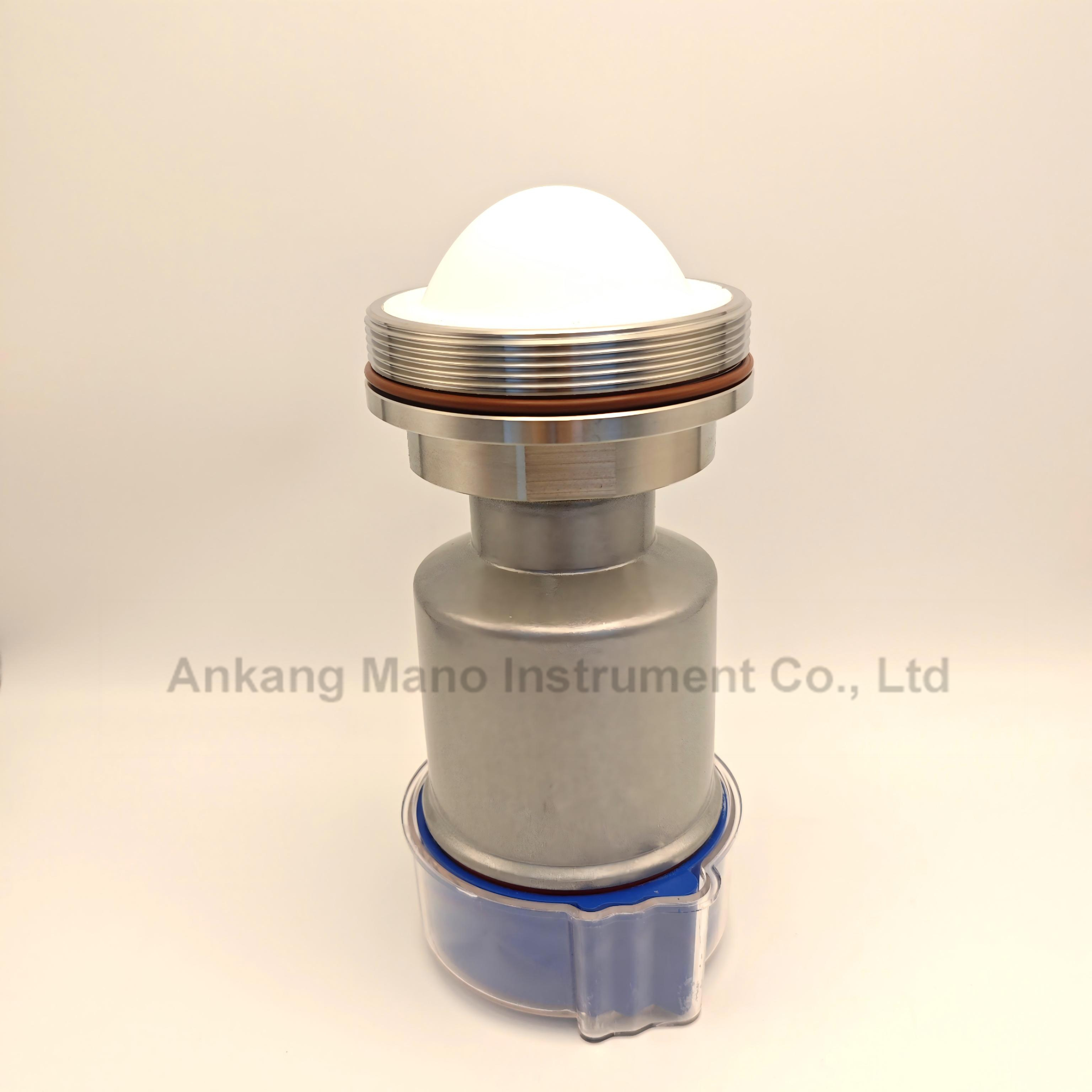

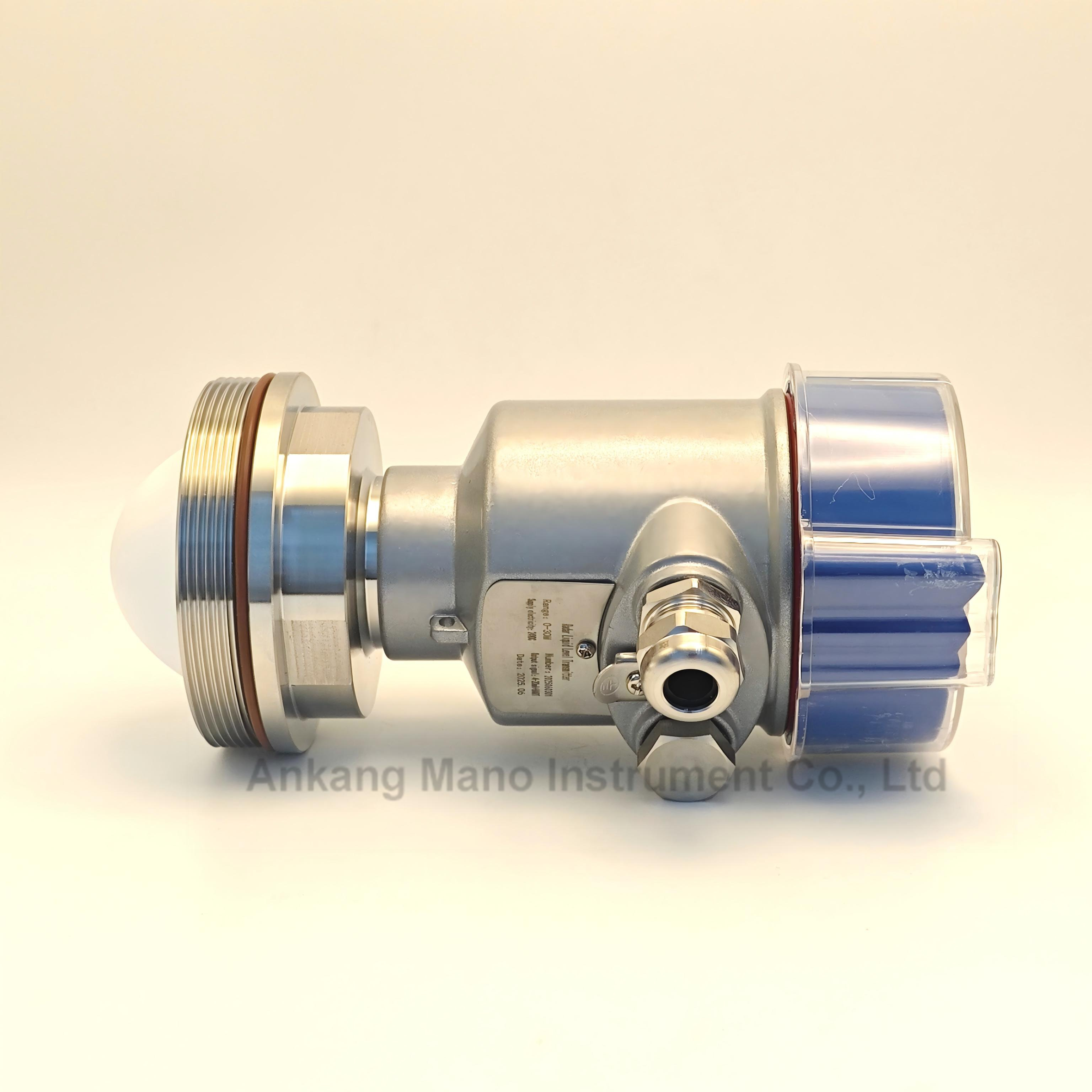

The MNR-40L Digital Radar Material Level/Liquid Level
Transmitter can accurately measure the polluting and corrosive media due to its
special non-contact measurement characteristics. Its stable and accurate
performance is also reflected in the complex measurement environment. The
output 4mA ~ 20mA DC signal can provide remote control, using unique microwave
technology and Echo-tech echo processing technology to adapt to various working
conditions. The working mode of pulse can measure medium with small dielectric
constant, and is safe to be used in various metal and non-metal containers,
without harm to human body and the environment. It is widely used in
reservoirs, dams, coal plants, power plants, petrochemicals, general industry
and other occasions.
●Specifications
|
Range |
0.2~120 M |
|
Antenna Material |
SS 304/Sealed PTFE |
|
Frequency |
80GHz, More Focus |
|
Accuracy |
±2 mm(liquid), ±5 mm(solid) |
|
Emission Angle |
≤±3.5° |
|
Operation Temperature |
-20°C to 80°C |
|
Frequency |
10g, 55Hz ~ 2000Hz77GHz-81GHz |
|
Protection Rating |
IP67 |
|
Size and Weight |
96mmx200mm weight: 2kgs. |
Product warranty terms:
You can enjoy free warranty service for the whole machine within one year from the date of sale. For cases where the free warranty service is not met, our company provides paid technical service and repair service for the life of the product.
The following conditions are not covered by the free warranty:
Damage caused by human factors, or used in abnormal working environment, and failure or damage caused by operation not in accordance with the instructions.
Unauthorized disassembly, repair, modification of products, etc.
Damage caused by other force majeure (such as natural disasters).
Not belonging to our company's products (such as counterfeit products).
●Ordering Guide
03
|
MNR-40L |
80G Hz Radar Level Transmitter |
||||||||||||||||||
|
|
|
Range |
Measurement Range : 0.2~120 M |
||||||||||||||||
|
|
|
[0 ~ X]m |
X: actual measured range, 10m, 20m, 30m |
||||||||||||||||
|
|
|
|
|
Code |
Power Supply |
||||||||||||||
|
|
|
|
|
U1 |
24V DC |
||||||||||||||
|
|
|
|
|
UA |
220 V AC |
||||||||||||||
|
|
|
|
|
|
|
Code |
Output Signal |
||||||||||||
|
|
|
|
|
|
|
A |
4mA~20mA DC |
||||||||||||
|
|
|
|
|
|
|
M |
Modbus RS485 |
||||||||||||
|
|
|
|
|
|
|
H |
Hart |
||||||||||||
|
|
|
|
|
|
|
|
|
Code |
Medium |
||||||||||
|
|
|
|
|
|
|
|
|
W |
Liquid |
||||||||||
|
|
|
|
|
|
|
|
|
S |
Solid |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
Code |
Electrical Connection |
||||||||
|
|
|
|
|
|
|
|
|
|
|
P26 |
M20x1.5(F) |
||||||||
|
|
|
|
|
|
|
|
|
|
|
P11 |
1/2NPT (F) |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Code |
Process Connection |
||||||
|
|
|
|
|
|
|
|
|
|
|
P27 |
G 2 male |
||||||||
|
|
|
|
|
|
|
|
|
|
|
P28 |
G 3.5 male |
||||||||
|
|
|
|
|
|
|
|
|
|
|
F |
Flange Type |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Code |
Antenna Material |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
P |
Sealed PTFE |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Code |
Certification Requirement
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
X |
Ex d IIC T6 Gb |
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
MNR-40L 10m U1 A W P26 P28 P X Complete Type Specification |
|||||||||||||||||||
