●Applications
• Hydrology and water resources
• Petroleum and petrochemical industry
• Electricity industry
• Mechanical Manufacturing
• Hydraulic pressure and pneumatic system
●Introduction

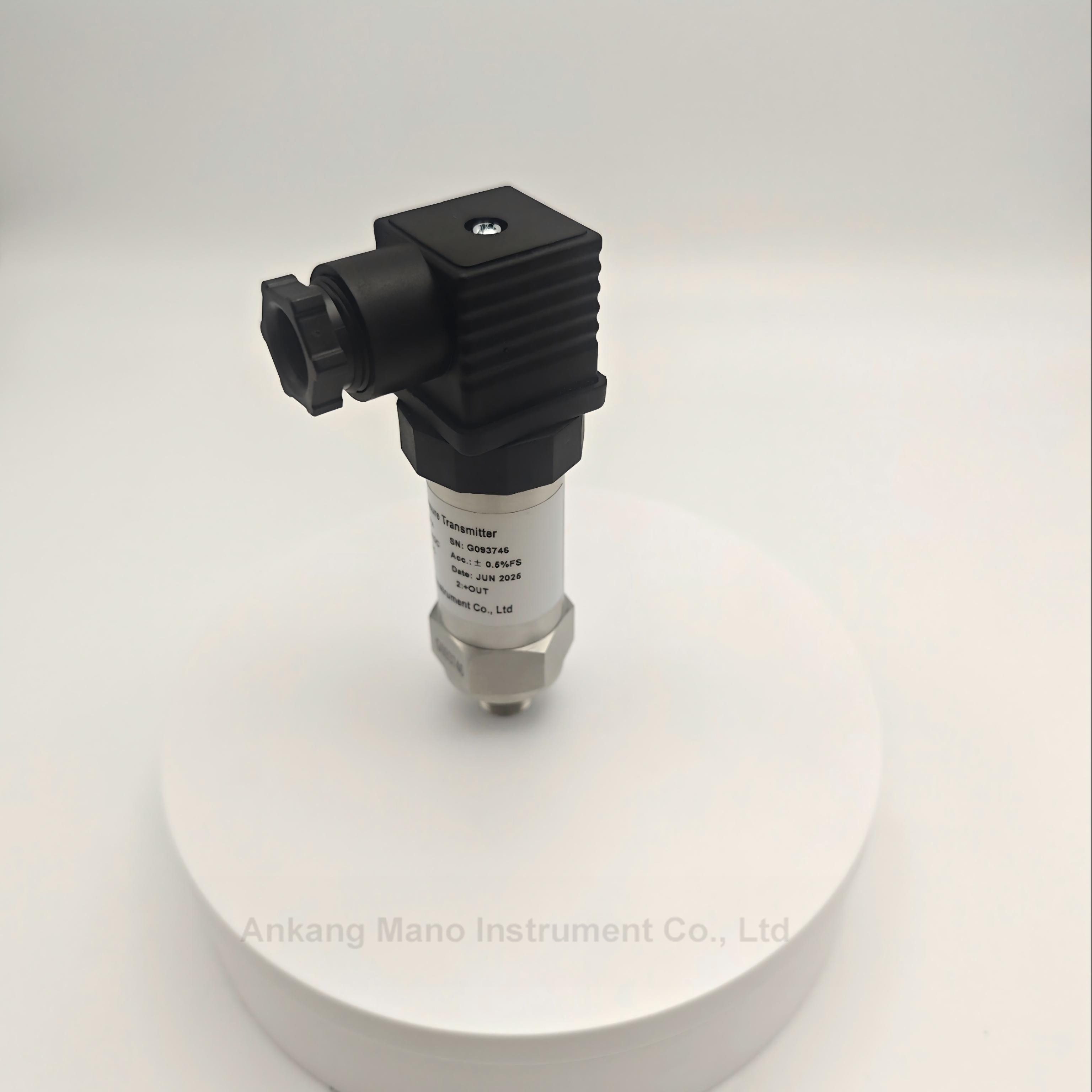

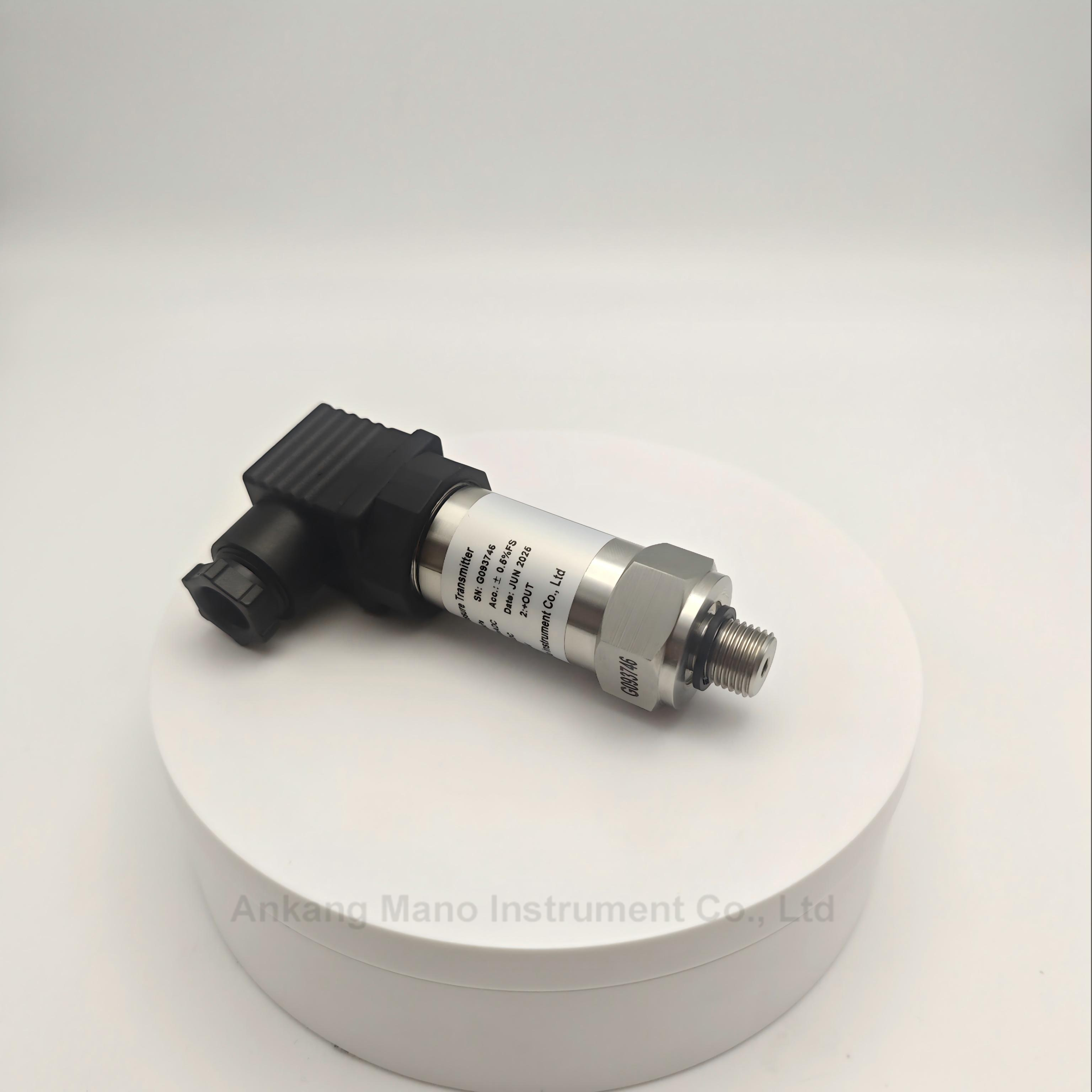

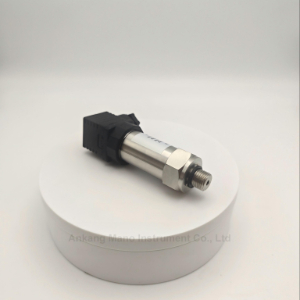

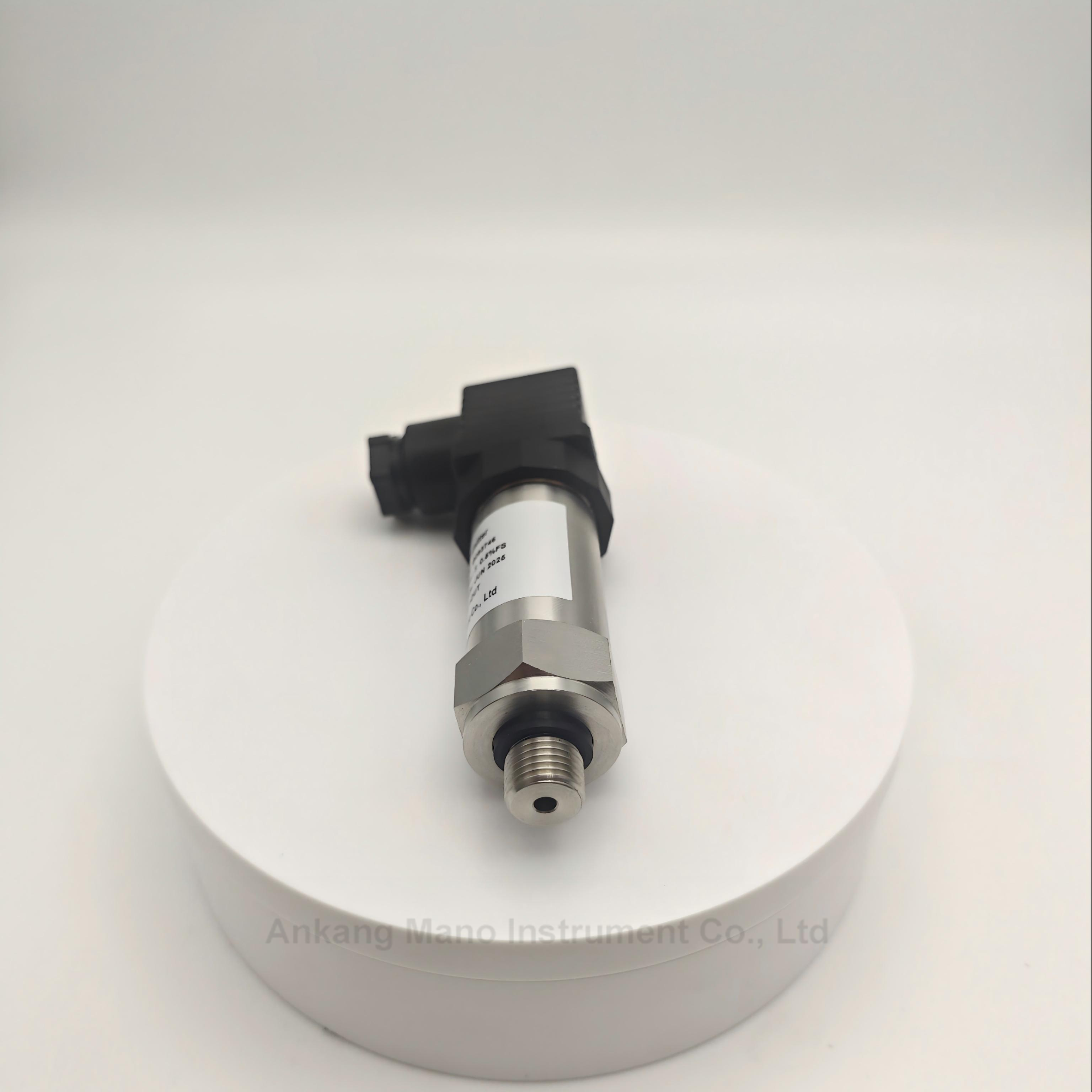

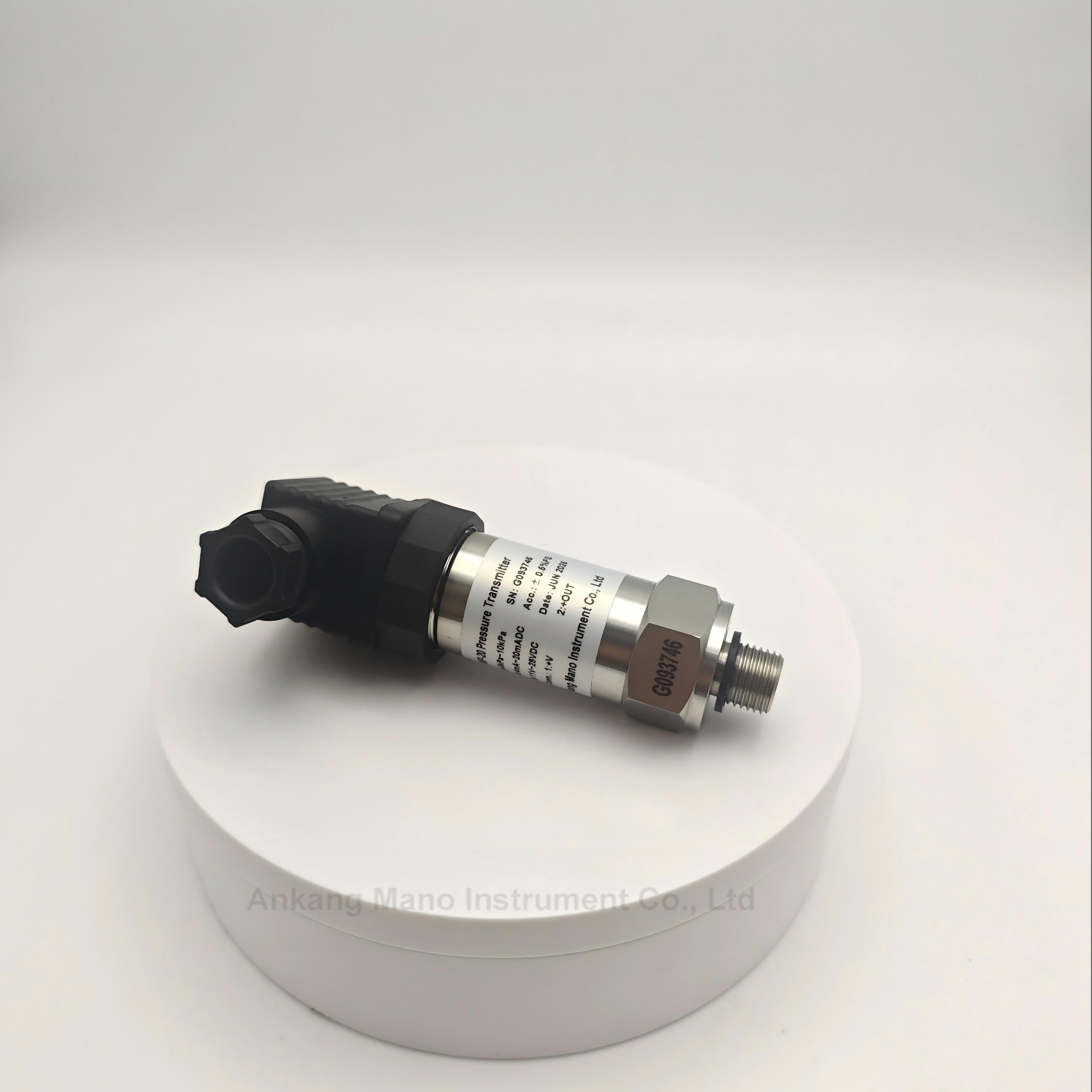

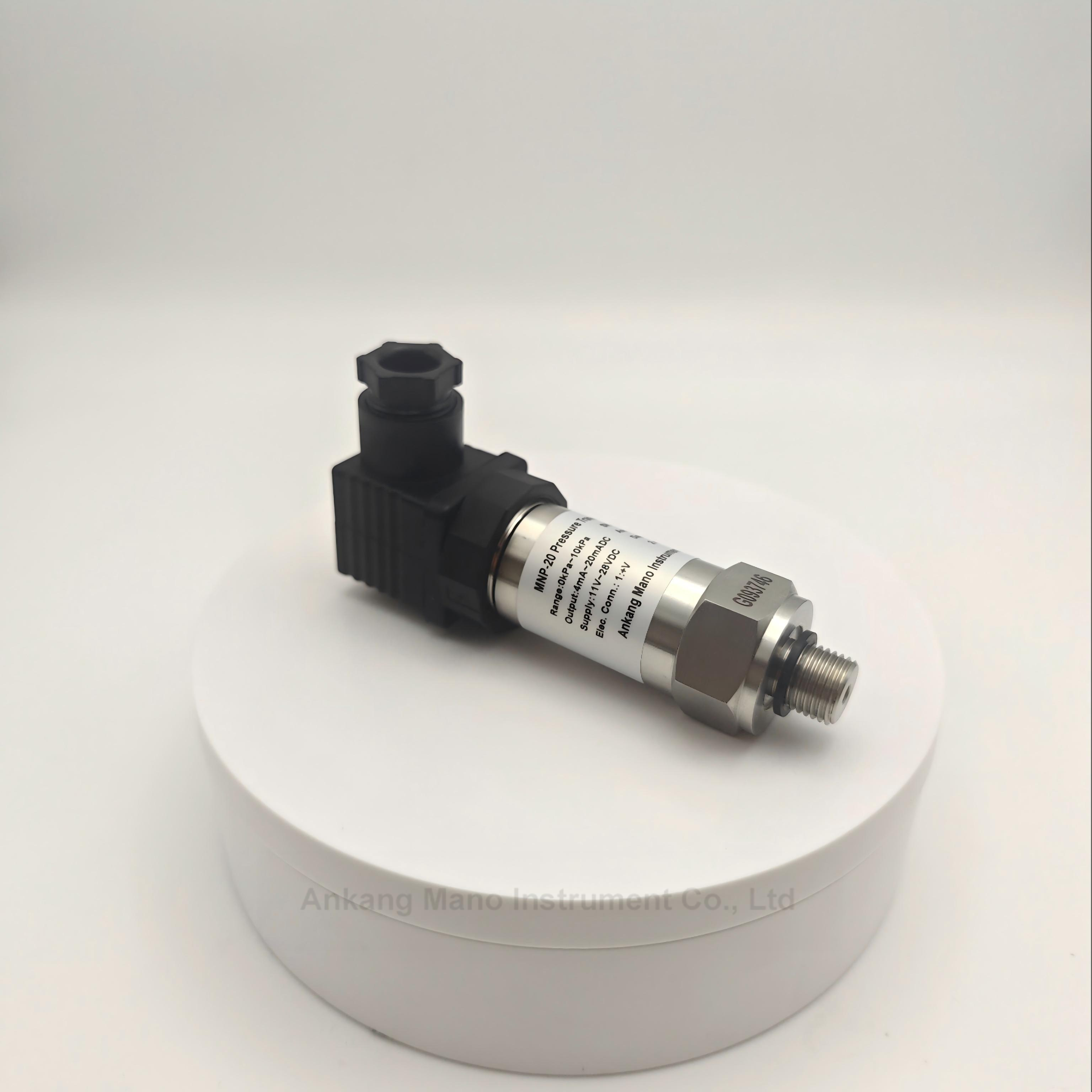

The MNP-20 is a pressure transmitter designed for general industrial applications. It contains a piezoresistive sensing element of excellent stability and reliability and a dedicated circuit that are housed in a high-strength stainless steel housing. Featured with integrated structure, standard analog outputs, multiple process connection and electrical connections, the product is an ideal solution for automation control applications that requires precise measurement. The product is also applicable in harsh environment.
Pressure Type
Range
Accuracy
Gauge G
0bar ~ 100mbar < X < 200mbar
±1%FS
200mbar ≤ X ≤ 1bar
±0.5%FS
1bar ≤ X ≤ 35bar
±0.25%FS
±0.5%FS
-1bar ~ -350mbar< X ≤ 2bar
±1%FS
-1bar ~ -350mbar < X < 2bar ~ 35bar
±0.5%FS
Absolute A
0bar ~ 700mbar < X ≤ 1bar
±1%FS
1bar < X < 10bar
±0.5%FS
10bar < X < 1000bar
±0.25%FS
±0.5%FS
Sealed Gauge S
35bar < X < 1000bar
±0.25%FS
±0.5%FS
Test standard: GB/T 17614.1-2015/IEC60770-1:2010;
Environment temperature: 20℃ ±5℃ ;
Relative humidity: 45%~75%
Thermal Drift
Zero Thermal Drift
±0.05%FS/℃ (≤1bar)
±0.03%FS/℃ (>1bar)
Span Thermal Drift
±0.05%FS/℃ (≤1bar)
±0.03%FS/℃ (>1bar)
●Output Signals
●Outline Dimensions
●Electrical Connection
●Sensor Sealing
●Materials
Wetted Parts
Isolated Diaphragm: SS 316L/Tantalum
Pressure Port: SS 304/SS 316L/Hastelloy C
Non-wetted Parts
Housing: SS 304/SS 316L
Cable wire: PE/PUR/PVC
●Process Connection
Product warranty terms:
You can enjoy free warranty service for the whole machine within one year from the date of sale. For cases where the free warranty service is not met, our company provides paid technical service and repair service for the life of the product.
The following conditions are not covered by the free warranty:
Damage caused by human factors, or used in abnormal working environment, and failure or damage caused by operation not in accordance with the instructions.
Unauthorized disassembly, repair, modification of products, etc.
Damage caused by other force majeure (such as natural disasters).
Not belonging to our company's products (such as counterfeit products).
●Ordering Guide
|
MNP-20 |
Pressure Transmitter |
||||||||||||||||||||
|
|
|
Range |
Measurement Range -1bar…0bar ~ 100mbar…1000bar |
||||||||||||||||||
|
|
|
[0 ~ X]mbarL or barL |
X: actual measured range, L means cable length when electrical connection is E2 |
||||||||||||||||||
|
|
|
|
|
Code |
Power Supply |
||||||||||||||||
|
|
|
|
|
U1 |
11V~28V DC |
||||||||||||||||
|
|
|
|
|
U6 |
5V±0.1V DC |
||||||||||||||||
|
|
|
|
|
U7 |
3.3V±0.1V DC |
||||||||||||||||
|
|
|
|
|
|
|
Code |
Output Signal |
||||||||||||||
|
|
|
|
|
|
|
A |
4mA~20mA DC |
||||||||||||||
|
|
|
|
|
|
|
O |
1V~5V DC |
||||||||||||||
|
|
|
|
|
|
|
F |
0V~5V DC |
||||||||||||||
|
|
|
|
|
|
|
T |
0V~10V DC |
||||||||||||||
|
|
|
|
|
|
|
V |
0.5V~4.5V DC |
||||||||||||||
|
|
|
|
|
|
|
L |
0.5V~2.5V DC |
||||||||||||||
|
|
|
|
|
|
|
|
|
Code |
Material |
||||||||||||
|
|
|
|
|
|
|
|
|
Isolated Diaphragm |
Pressure Port |
Housing |
|||||||||||
|
|
|
|
|
|
|
|
|
30 |
SS 316L |
SS 304 |
SS 304 |
||||||||||
|
|
|
|
|
|
|
|
|
31 |
SS 316L |
SS 316L |
SS316L |
||||||||||
|
|
|
|
|
|
|
|
|
42 |
Tantalum |
SS 304 |
SS 304 |
||||||||||
|
|
|
|
|
|
|
|
|
43 |
Tantalum |
Hastelloy C |
SS 304 |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
Code |
Electrical Connection ① |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
E1 |
4-pin plug connector |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
E2 |
cable connection |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
E4 |
M12×1 4-pin plug connector |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Code |
Process Connection |
||||||||
|
|
|
|
|
|
|
|
|
|
|
P1 |
M20×1.5 male, end face seal |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
P2 |
G1/4 male, end face seal |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
P3 |
G1/2 male, end face seal |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
P5 |
M20×1.5 male, waterline seal |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
P6 |
NPT1/4 male |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
PF1 |
M20×1.5 flush structure |
0mbar ~ 200mbar…350bar |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
PF3 |
G1/2 flush structure |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
PW1 |
DN25 clamp |
0mbar ~ 350mbar…350bar |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
PW1s |
DN25 clamp with heat sink |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Code |
Accessory |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
null |
no accessory |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
D4 |
4 digits LED digital indicator (only for 4mA ~ 20mA DC output non- explosion proof or non-ship-use products with B1 connection) |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
D5 |
4 digits LCD digital indicator (only for 4mA ~ 20mA DC output non- explosion proof or non-ship-use products with B1 connection) |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Code |
Pressure Type |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
G |
gauge |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A |
absolute |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S |
sealed gauge |
|||
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
MNP-20 [0 ~ 16]bar U1 A 30 E1 P2 D4 G Complete Type Specification |
|||||||||||||||||||||
